21KW High Temperature Heat Pump Hot Water Heater 80℃,Auto-Control system
Technology Specification Porduct Details
1 . MODEL MD60D 2 . Rated heating capacity 21KW
3 . Rated Cooling capacity 15 4 . Hot water supply 520L / h
5 . Average heating input power 5.68 KW 6 . Rated heating input current 12A
7 . Rate outlet water temp 80℃ 8 . COP 4.2
9 . Refrigerant R417A 10 . Noise 60Db ( a )
11 . Air source heat exchanger Finned heat exchange 12 . Power 380V/ 50HZ
13 . Dimension 1120 × 490 ×1270 MM 14 . Packing size 1200 * 520 * 1425 MM
15 . Unit weight 210KG 16 . Working air temp range (-20℃)—45
17 . compressor Copeland 18 . use: factory Bathroom office
19 .Fan Type axial flow fan
20 . Hot water side heat exchange
( 1 ) water folw 6000L / H
( 2 ) water pressure down 48Kpa
( 3 )pipe size 25Db
( 4 )Max spuare mater 175M ²
Advantage
1. Adopt world famous brand compressor.
2. High purity refrigerant: R417A/R410a/R407C, to make sure high COP.
3. Optimized system design: R417A/ R410a/R407C system with accurate capillary tube or electronic expansion valve, achieving stable operation and high COP in wide ambient temperature range.
4. Big heat exchangers: big hydrophilic fin-tube heat exchanger, big titanium coil heat exchanger, (maybe the biggest one in China), to make sure high COP in wide ambient temperature range.
5. Big and strong case: allowing built-in big heat exchangers, and reducing vibration and noise.
6. Advanced control: the quick-mind microchip LCD controller (Carel controller is optional) provides extremely convenient control on the heat pump.
7. Comprehensive protection: the heat pump is protected fully, including water flow, water temperature, compressor pressure and temperature, temperature for heat exchanger, and anti-freezing for heat exchanger and so on.
8. Quiet: using the high-efficiency, low noise rotary or scroll compressor, low noise fan.
Packaging & Shipment
1> Meeting heat pump can sure delivery heat pump within 5~20 working days as we warehouse stock condition.
2> Heat pump with strong plywood pallet , strong plywood box for loading, make sure no problem happen during rude transportation
3> All spare parts of the heat pump water heater will together loading into package , one time finished shipment to buyer.
4> Take video of the heat pump for buyer before package to 100% sure buyer get product same as order, no any different.
5>Meeting heat pump offer 100% test online, 5% test in Lab by 24 hour for one lot order (if not new model)
Packaging Details :Standard export packing -with plywood case packages,OEM is available for Factory price heat pump water heaters
Delivery Time :15 work days after arrival of down payment
We have test every machine here before it leaves the factroy to make sure that every machine work normally .

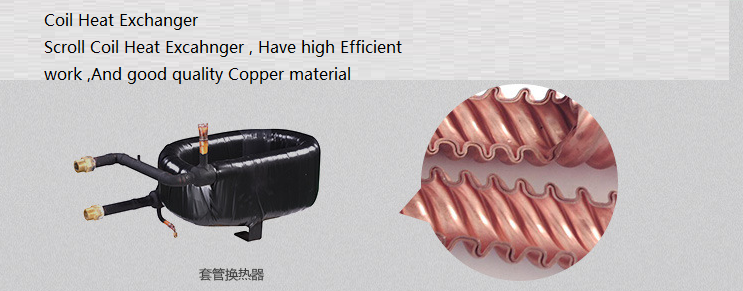

Main part accessories
